Merging results from restart simulations

Merging NERDSS restart simulations output files

merge_simulation_results()

Description: The output files from multiple simulations and their corresponding restart simulations should be in a structured manner:

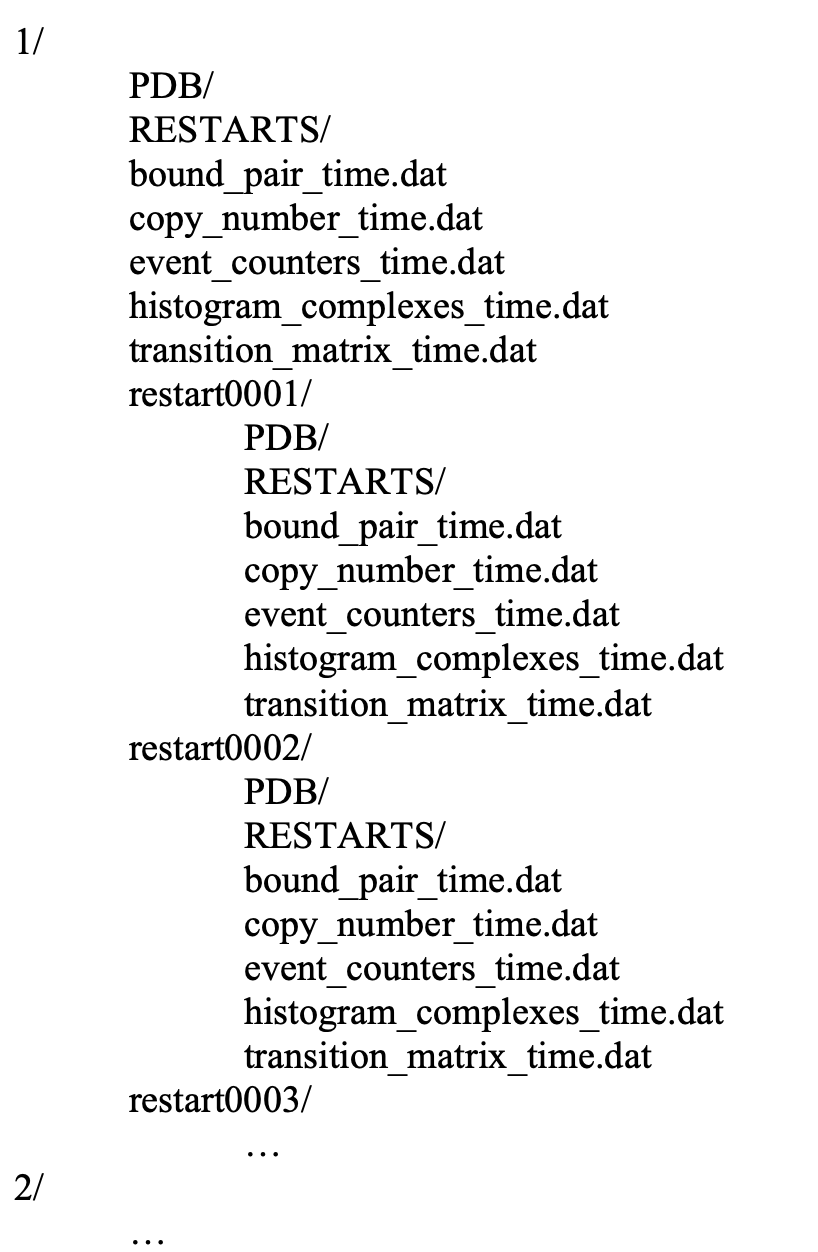

Folder structure for merging results from multiple simulations with restart simulations

Folder structure for merging results from multiple simulations with restart simulations.

Next, run the function. This function will merge the following files and directories from the original simulation and all its restart simulations: bound_pair_time.dat, copy_number_time.dat, event_counters_time.dat, histogram_complexes_time.dat, transition_matrix_time.dat, the PDB directory, and the RESTART directory. After merging, all restart#### directories will be removed.

Important

Before running the function, ensure the following:

  1. Run the function in the directory containing subdirectories named 1/, 2/, etc.

  2. Assign names to the restart#### directories based on the order of their first recorded iterations. For example, if the restart simulation data begins at time=0.5, it should be stored in restart0001, and if it begins at time=1.0, it should be stored in restart0003.

Parameters: - None

Returns: - None

Merging NERDSS output files

Description: Merges NERDSS output files. If the file_type parameter is not provided, the function will simply concatenate the source_file to the end of the destination_file. If a specific file_type is provided, the function will correctly retain the iterations in the destination_file that occurred before the first recorded iteration in the source_file and then concatenate the data from the source_file to the end of the retained iterations in the destination_file. For example, if the destination_file contains iterations from time=0.0 to time=1.0, and the source_file contains iterations from time=0.5 to time=100.0, the function will keep the iterations from time=0.0 to the last iteration before time=0.5 in the destination_file and concatenate iterations from time=0.5 to time=100.0 from the source_file to the destination_file.

Parameters:

  • destination_file (str): The path of the destination file.

  • source_file (str): The path of the source file.

  • file_type (str): The file type of the files to be merged. Options include:

    • “histogram” (histogram_complexes_time.dat)

    • “event” (event_counters_time.dat)

    • “bound” (bound_pair_time.dat)

    • “copy” (copy_number_time.dat)

    • “transition” (transition_matrix_time.dat)

Returns:

  • None
